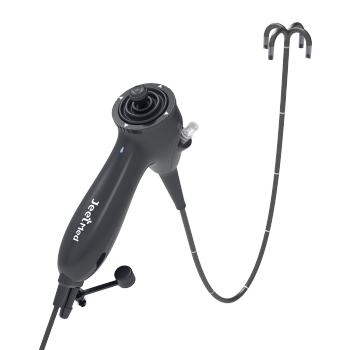

RAE-201 Veterinary Flexible Otoscope | Ultra-thin electronic endoscope
- FOB Price
US $4800.01 - 1 piece
- group name
- Veterinary Otoscope
- Min Order
- 1 piece
- brand name
- JeetVet
- model
- RAE-201
- Nearest port for product export
- Shenzhen
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW, CIP, CPT, Express Delivery
- Acceptable payment methods
- T/T, L/C
- update time
- Sat, 06 Dec 2025 01:35:25 GMT
Paramtents
Purpose Animal Ear and Nasal Examination
Working Length 600 mm
Outer Diameter of the Tube 3.1 mm
Inner Diameter of the Channel 1.2 mm
Bending Angle 180°
Steering Direction up & down
Depth of Field 5mm ~ 50mm
Field Angle 120°
Pixels 160,000
Packging & Delivery
- 53cm x45cm x18cm
-
Min Order1 piece
Briefing
Get RAE-201 portable veterinary flexible otoscope with 3.1mm outer diameter and 1.2mm inner diameter. This animal otoscope's ultra-thin electronic endoscope navigates intricate anatomies, enabling lung biopsies, lavage, oral and ENT examinations in small and exotic animals with minimal invasiveness.
Detailed
Introduction to RAE-201 Portable Veterinary Flexible Otoscope
The RAE-201 portable veterinary otoscope is a cutting-edge veterinary ENT equipment, which can be used for ear and nasal examinations, lung biopsies, sampling, lung lavage, and dental inspections of animals. This veterinary flexible endoscope is an essential tool for veterinary practices, wholesalers seeking a reliable and multifunctional animal diagnostic solution.
Ultra-short bending section
Small diameter, large channel
Four-layer medical grade tube
Main Features
High-quality optical system
Provides HD resolution to ensure clear endoscopic images. 120° wider observation range. The depth of field from 7 mm to 100 mm makes it adaptable to different inspection depths.
Flexible mechanical design
Flexible insertion tube: The insertion tube is 600 mm long and is made of medical-grade materials that are corrosion-resistant and antibacterial. High flexibility: Large bending angles in up and down directions
Convenient operation
Ergonomic handheld controller for easy bending control and rotation.
The weight is less than 1kg. Ensures maneuverability and ease of use, reducing operator fatigue during prolonged procedures.
Durability & Efficiency
Flexible tube undergoes rigorous aging tests. Designed for over 25,000 bends, guaranteeing long-term reliability. Quick and smooth diagnosis and treatment. Reduce operational difficulty and surgical time.
Detailed Image of RAE-201 Veterinary Flexible Otoscope
Veterinary Flexible Otoscope Technical Parameters
General Parameters |
Brand
|
JeetVet
|
|
|
Model
|
RAE-201
|
||
|
Purpose
|
Veterinary Flexible Otoscope, mainly used for ear and nasal examination of small animals and exotic animals
|
||
Optical Parameters |
Viewing angle
|
120°
|
|
Depth of field | 5 mm - 50 mm | ||
Pixels | 160,000 | ||
Mechanical Parameters | Working length | 600 mm | |
Outer diameter of the tube | 3.1 mm | ||
Inner diameter of the channel | 1.2 mm | ||
Independent water & air supply channel | None | ||
Insertion tube material | Four-layer Medical grade flexible material, corrosion-resistant and antibacterial | ||
Bending angle | 180° | ||
Operation and Control | Control method | Handheld controller with joystick for up & down control | |
Display | Displayed by user's smart phone, tablet or computer | ||
Lighting System | Light source type | Endoscope operates without internal electric power, drawing power from the user's mobile phone. | |
Illumination | LED light | ||
Connection and Compatibility | Connection interface | Use USB cable to connect with smart phones, tablet or computer | |
Compatible devices | Support connection to smart phone, tablet, computer for data transmission and real-time monitoring | ||
Other Functions | Disinfection method | Alcohol wiping，enzymatic cleaning solution or 2% glutaraldehyde disinfection | |
Portability | Lightweight design, equipped with a portable case, convenient for carrying and use | ||
Memory | Internal memory of mobile phone | ||
User interface | Friendly operation interface | ||
Accessories | Biopsy forceps, Y-shape valve, Luer connector syringe, Packing case, Cleaning brush and etc. | ||
Endoscopic Examination for a Turtle by JeetVet Flexible Veterinary Endoscope
A veterinarian used endoscopy to perform stomach examinations on our shelled friends – turtle. Endoscopy is an incredible technique that allows vets to see inside an animal's body without the need for invasive surgery. It involves using a tiny camera on a flexible tube, which gives us a clear and detailed view of the stomach and other internal organs.
Download RAE-201 Portable Veterinary Flexible Otoscope Brochure
Veterinary Flexible Otoscope Application Scenario
The veterinary flexible otoscope offers unparalleled versatility and precision in the diagnosis and treatment of various ear, nasal, and oral conditions in animals. Its flexibility allows for comprehensive examination, making it particularly valuable in assessing complex cases that involve anatomical challenges or smaller species.
1. Otic Examinations and Procedures:
Veterinarians use the flexible otoscope to conduct detailed examinations of the ear canal, facilitating the diagnosis of conditions such as otitis externa, otitis media, and the presence of foreign bodies.
2. Nasal Cavity and Pharyngeal Assessment:
This device is also highly effective for nasal cavity and pharyngeal assessments, enabling veterinarians to visualize and treat conditions such as nasal polyps, tumors, or foreign objects. The flexibility of the otoscope is particularly advantageous in reaching and evaluating areas that are otherwise difficult to access with rigid scopes.
3. Dental and Oral Examinations:
In addition to otic and nasal applications, the flexible otoscope is utilized in dental and oral examinations, especially in small mammals and exotic species. It provides a non-invasive method to inspect the oral cavity for dental disease, oral masses, or other abnormalities, thus contributing to comprehensive patient care.
4. Minimally Invasive Procedures:
Beyond diagnostics, the flexible otoscope can be employed for minimally invasive procedures such as biopsies, foreign body removals, and flushing of the ear canal. Its precision and maneuverability reduce patient discomfort and improve the overall efficacy of treatment.
5. Exotic and Small Animal Care:
This tool is especially beneficial in the care of exotic pets and small animals, where its slim and flexible design allows for safe and thorough examinations without the need for extensive restraint or sedation. For species with delicate or intricate anatomy, the flexible otoscope is often the preferred choice to ensure detailed visualization and accurate diagnostics.
Veterinary Flexible Otoscope Packaging Display
After-Sales Service Guarantee
- Warranty: Comprehensive warranty and support.
- Customer service: Get technical support and training from the manufacturer.
- We are committed to ensuring your complete satisfaction with our products. Our After-Sales Service Guarantee provides you with comprehensive support, including prompt responses to inquiries, technical assistance. Should you encounter any issues, our dedicated customer service team is available to resolve them efficiently and effectively. We stand by the quality of our products and are here to ensure that your experience with us is nothing short of excellent.
